FALL530 Girder Grip Anchor – Wilmington Safety Supply

FALL530 Girder Grip Anchor

Categories: ,

Girder Grip Anchor

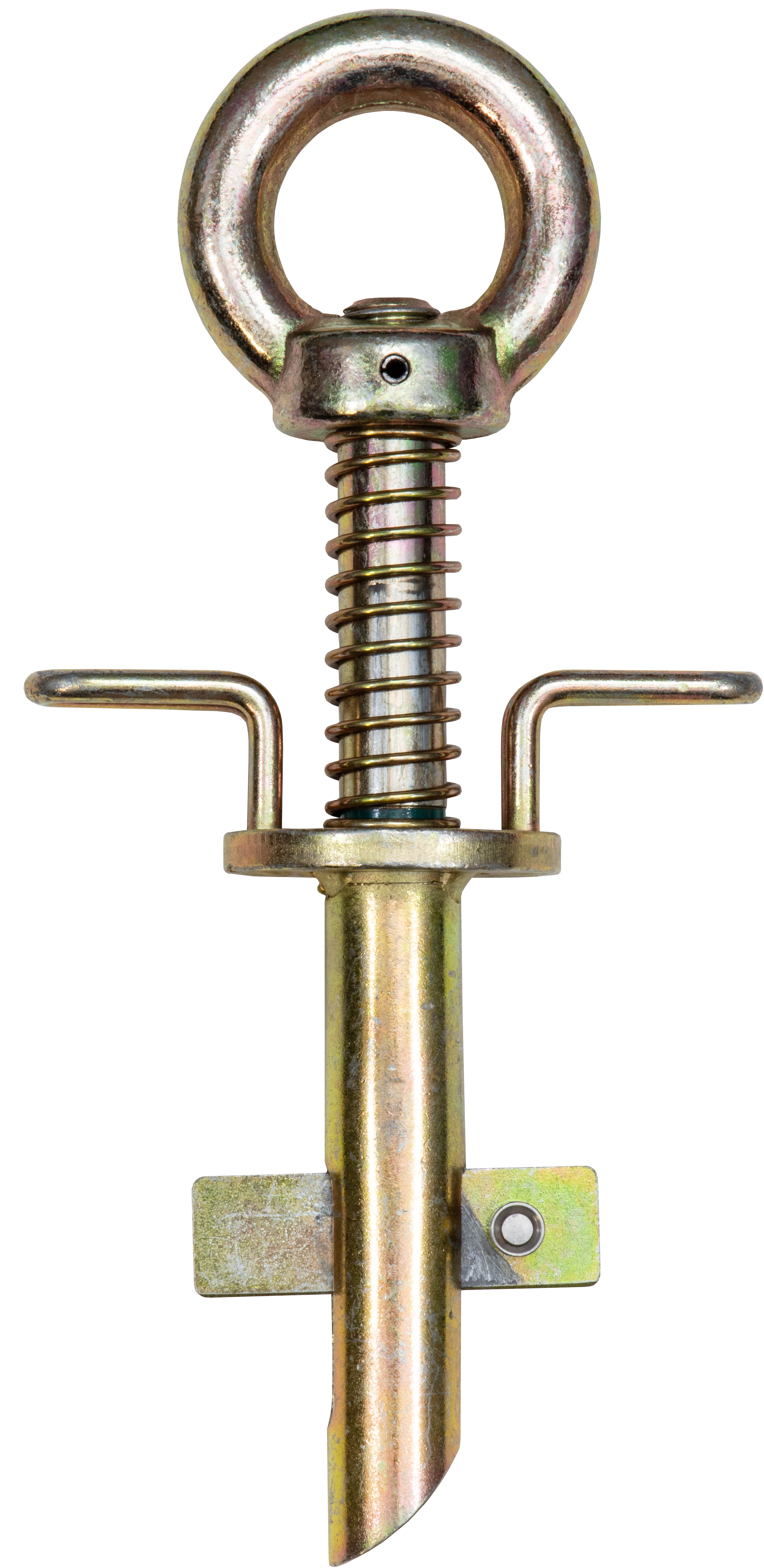

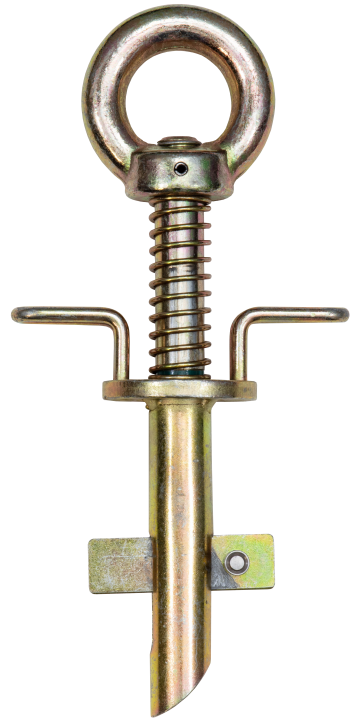

The 019-4007 girder grip is an economical anchorage point for metal and steel structures.  The anchor fits a 3/4″ hole and can be used horizontally or vertically.

  • Model#: 019-4007

FEATURES

  • Heavy Duty Steel Construction
  • Can be used horizontally or vertically
  • O-Ring Connection Point
  • Single User – Weight Capacity: 310 lbs

Read More

Description

Girder Grip Anchor

The 019-4007 girder grip is an economical anchorage point for metal and steel structures.  The anchor fits a 3/4″ hole and can be used horizontally or vertically.

Click Here for Instructional Manual

Click Here for Technical Data Sheet

SPECIFICATIONS

MaterialsYellow Zinc Plated Steel
Weight1.7 lbs (0.77 kg)
Length9 in, Max working length 6″
Weight Capacity/Max Working Load310 lbs (140.61 kg)
Applicable StandardsMeets OSHA 1926-502 – ANSI Z359.1-2007 – ANSI A10.32 2012
