FALL246 Beam Anchor

Categories: ,

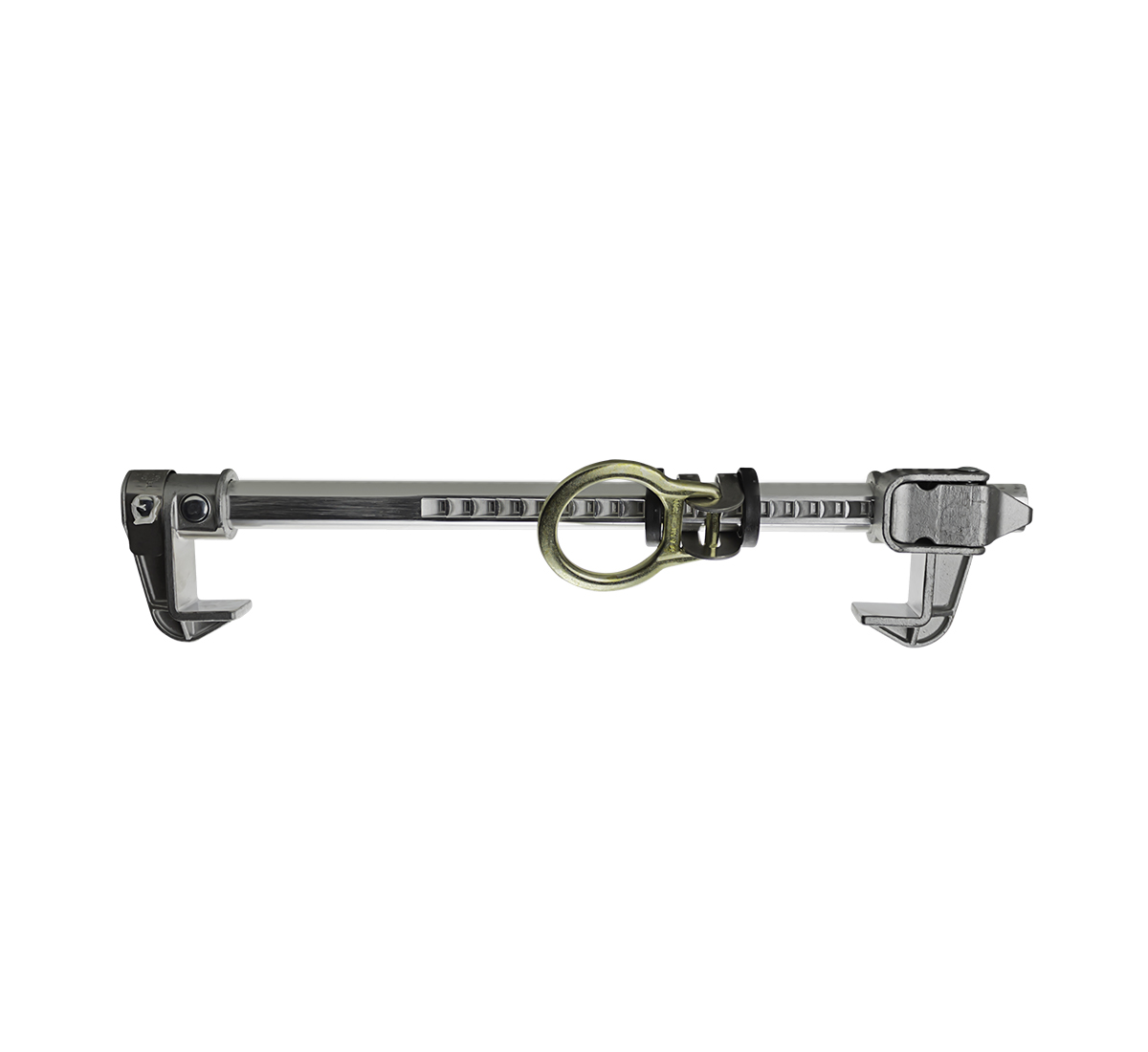

Premier Beam Anchor

The premier beam anchor is designed for 3 1/2″ to 14″ beams with a flange up to 1 1/4″. It has a centered d-ring and is for use in horizontal applications.

  • Model#: FS860

———————————————————————————————

FEATURES

  • Premier anchor
  • Reduced friction nylon rollers
  • Center positioning retainer prevents jamming on beam
  • Double – toothed pawl
  • Range 3 1/2″ to 14″
  • Overall length 19″
  • Beam flange thickness capacity 1 1/4″

Read More

Description

Premier Beam Anchor

The premier beam anchor is designed for 3 1/2″ to 14″ beams with a flange up to 1 1/4″. It has a centered d-ring and is for use in horizontal applications.

Click Here for Instructional Manual

Click Here for Technical Data Sheet

SPECIFICATIONS

MaterialsForged anodized aluminum cross bar; Stainless steel clamps, latches and springs; Carbon steel D-ring
Weight3.75 lbs (1.7 kg)
Weight Capacity/Max Working Load310 lbs (140.61 kg)
Applicable StandardsMeets OSHA 1926-502, ANSI Z359.1, ANSI A10.32
