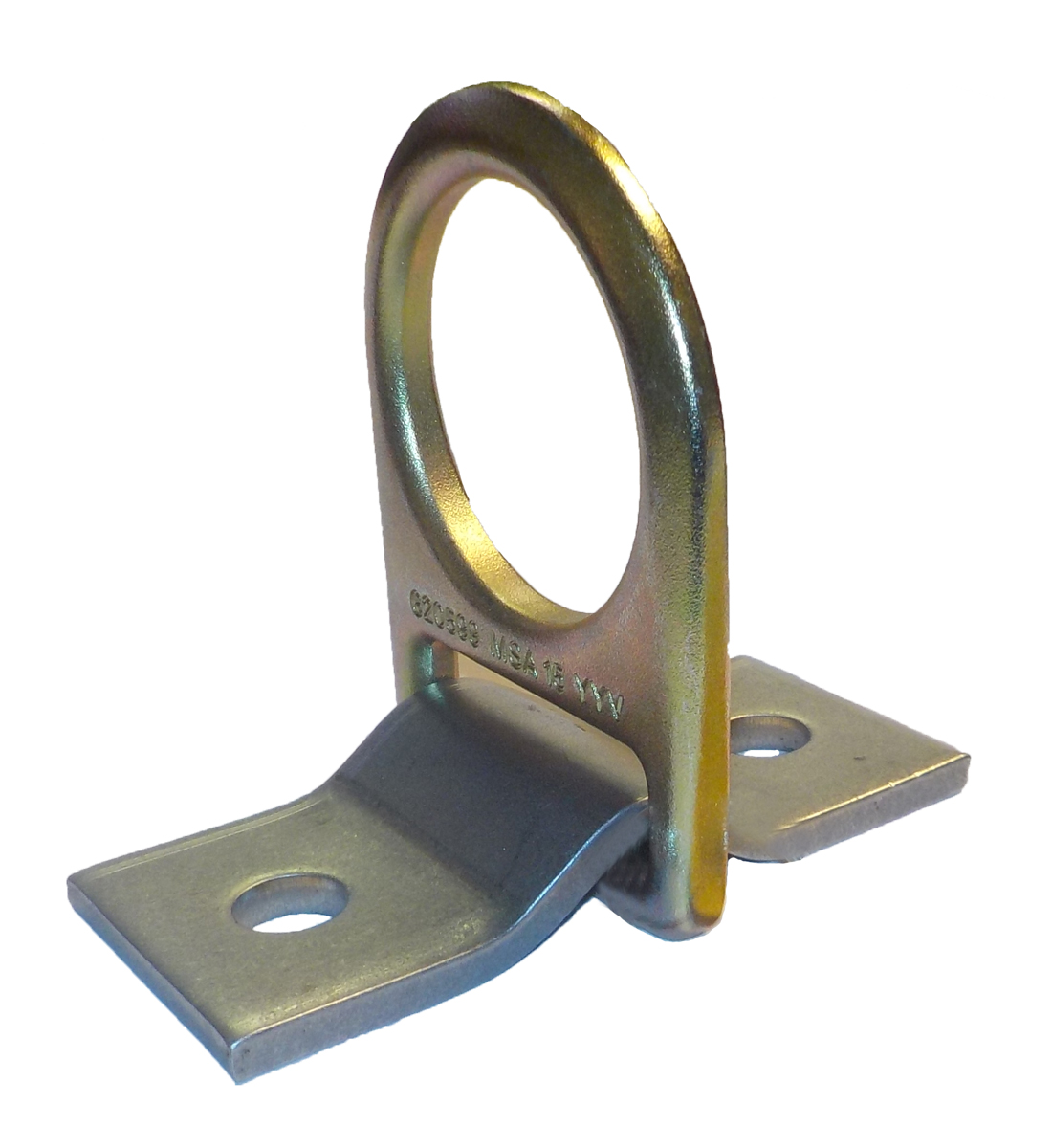

FALL196 Floating D-Ring Anchor FS888

Categories: ,

Bolt on D-Ring Anchor

This D-ring anchor is 5K rated and can be bolted or welded on. This anchor is a single point anchorage for steel applications. Design allows for free moving movement of D-ring after installation.

  • Model#: FS888

FEATURES

  • Designed for free moving
  • Minimum tensile strength 5,000 lbs
  • Zinc plated steel D-ring
  • Forged steel plate
  • Overall Dimensions .25″ x 2.00″ x 4.50″
  • Bolt on free moving D-ring anchor for steel applications

Read More

Description

Bolt on D-Ring Anchor

This D-ring anchor is 5K rated and can be bolted or welded on. This anchor is a single point anchorage for steel applications. Design allows for free moving movement of D-ring after installation.

Click Here for Technical Data Sheet

SPECIFICATIONS

MaterialsZinc plated steel D-ring; Forged steel plate
Weight1.20 lbs (0.54 kg)
Weight Capacity/Max Working Load310 lbs (140.61 kg)
LengthOverall dimension 0.25 x 2.00 x 4.50 (in)
DiameterPre-drilled hole diameter 1/2″ (12.7 mm)
Minimum Breaking Load5,000 lbs – 22 kN
Applicable StandardsMeets OSHA 1926-502, ANSI Z359.1, ANSI A10.32
